  Products Click on images to enlarge
Click on image to enlarge SD008
8" SMART DRAIN™ BELT
40' Minimum Purchase
Call For Pricing

SMART DRAIN™ belt is the standard bearer of the SMART DRAIN™ drainage system and is recommended for projects such as retaining walls, foundation drainage, golf course drainage and any other project that would require the use of 4" drain pipe or larger. 8" SMART DRAIN™ belt can be used in conjunction with SMART DRAIN™ wrapped pipe to make the ultimate sub surface drainage system.
Click on image to enlarge SD004
4" SMART DRAIN™ BELT
40' Minimum Purchase
Call For Pricing

4" SMART DRAIN™ belt is an economical, yet effective, alternative to 8" SMART DRAIN™. 4" SMART DRAIN™ belt can be installed in with a 6" wide trencher as opposed to the 10 - 12" wide trenches for 8" wide belt. This smaller belt is perfect for residential lawns and smaller drainage projects that would utilize 3" drainage pipe or smaller.

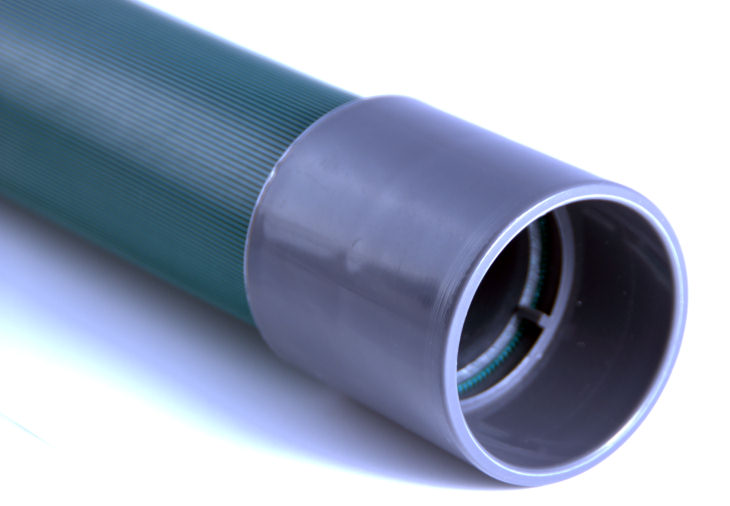

Click on image to enlarge SDP001
SMART DRAIN™ WRAPPED PIPE
Supplied with 1 SMART DRAIN™ Pipe Coupler (SDP003)
Call For Pricing (Length: 3.28'/1 Meter)

SMART DRAIN™ wrapped pipe provides Smart Drain's advanced micro siphoning capabilities in an easy to install pipe form. The wrapped pipe is fast becoming the standard bearer for retrofitting retaining walls since it can be installed into existing walls without any drainage aggregate or filter fabric. SMART DRAIN™ wrapped pipe can also be utilized in narrow and tight fitting areas, just like perforated pipe, where is there is not enough space for SMART DRAIN™ belt to be installed.

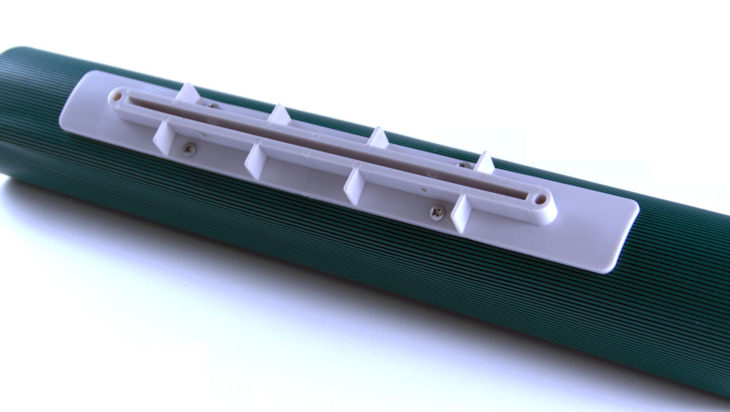

Click on image to enlarge SDP002
SMART DRAIN™ WRAPPED PIPE WITH 8" BELT ADAPTER
Supplied with 1 SMART DRAIN™ Pipe Coupler (SDP003)
Call For Pricing (Length: 3.28'/1 Meter)

Extend and enhance your SMART DRAIN™ installation by combining SMART DRAIN™ wrapped pipe with SMART DRAIN™ belt. This item includes an 8" belt adapter that couples SMART DRAIN™ belt with SMART DRAIN™ pipe for the ultimate in drainage performance.
  Accessories Click on images to enlarge
Click on image to enlarge SDC008
COUPLERS FOR 8" SMART DRAIN™ BELT
(Fits 2" PVC and Corrugated HDPE) Supplied with Fastening Screws
Call For Pricing

8" SMART DRAIN™ belt couplers make for easy and quick coupling of 8" SMART DRAIN™ belt to 2" PVC pipe. These time savers get rid of the need to manually slot your PVC pipe which can be time consuming and prone to errors.
Click on image to enlarge SDC004
COUPLERS FOR 4" SMART DRAIN™ BELT
(Fits 2" PVC and Corrugated HDPE)
Call For Pricing

4" SMART DRAIN™ belt couplers make installing 4" SMART DRAIN™ belt a breeze. The precision milled slots provide a snug fit for SMART DRAIN™ belt.
Click on image to enlarge SDP003
COUPLERS FOR SMART DRAIN™ WRAPPED PIPE
Call For Pricing

SMART DRAIN™ pipe couplers are specially designed for use with SMART DRAIN™ wrapped Pipe. These couplers, when connected with SMART DRAIN™ wrapped pipe sections, leaves the upstream end of the pipe open to bring water into the center of the pipe and closes off the back end of the next pipe section to prevent backflow of the drained water back into the soil. They also come in handy as end pieces for sections of joined pipe that can either be fitted with an adapter to switch to 2" PVC or as an outlet piece which can be mortared into place (i.e. retaining walls).
Click on image to enlarge SDP005
END CAP FOR SMART DRAIN™ WRAPPED PIPE
Call For Pricing

SMART DRAIN™ end caps fit perfectly into the SMART DRAIN™ wrapped pipe couplers. You need one end cap for each series of connected pipe sections if you are going to terminate the line at the first section of pipe.
Click on image to enlarge SDP004
COUPLER TO ADAPT SMART DRAIN™ WRAPPED PIPE TO 2" PVC OR CORRUGATED PIPE
Call For Pricing

This item connects your SMART DRAIN™ wrapped pipe to standard 2" PVC. This allows you to use standard 2" PVC fittings and pipe to extend you system or hook up to existing drain lines.
Click on image to enlarge SDP006
2" TO 4" PIPE ADAPTER
(Made to Order, Customer Must Supply Outside Diameter of 4" Pipe)
Call For Pricing

Responding to customer needs, we have come up with this 2" to 4" PVC adapter. Many installations require SMART DRAIN™ to be hooked up to 4" drain pipe and this special adapter makes it possible.
